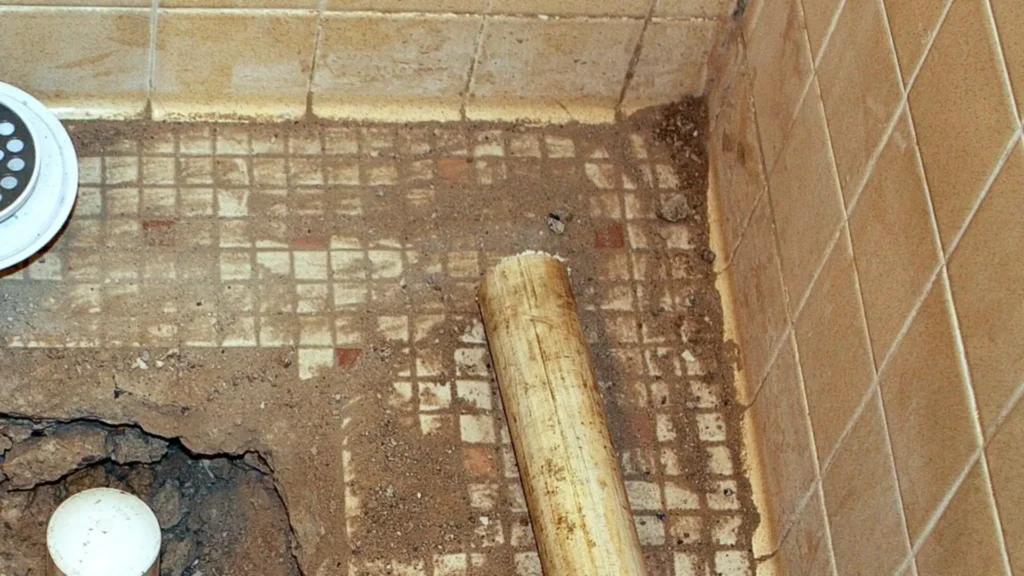

The reason waterproofing failures are so costly is that they’re invisible for a long time. Water working through a gap in the membrane, an unsealed corner, or a poorly flashed niche moves slowly into the wall framing or subfloor behind the tile, and by the time it shows up as discolouration, a musty smell, soft flooring, or visible mould, the damage has often been developing for months or years. Getting the membrane system right the first time, rather than discovering a shortcut later, is the single biggest factor in whether a shower lasts.
How Much Does Waterproofing and Shower Pan Installation Cost in Ottawa?
Waterproofing and pan work is quoted per project, since pan type, drain location, and existing condition all change the scope, here is what shapes the number.
Waterproofing and pan work
Quoted per project
Whether a pre-formed or mud-set pan fits your shower's footprint
Drain location and how much slope needs to be built in
Condition of the existing substrate and framing
When bundled into a full wet-area retile, this work is included in that $15 – $30 per sq ft installed rate
We determine whether a pre-formed or mud-set pan fits your shower's footprint and existing drain location.
2
Slope and frame the pan
The pan is sloped precisely toward the drain so water doesn't pool anywhere on the shower floor.
3
Apply a continuous membrane
A membrane system is applied over every wall, seam, corner, and penetration as one continuous system, not just the flat surfaces.
4
Seal niches and curbs, then verify
Niches and curbs are treated as part of the same waterproofing system, and we verify coverage before any tile goes on top.
Tiles Experts provides professional waterproofing and shower pan installation throughout Ottawa, Ontario. This is the part of a tile job that's invisible once the work is finished, and also the part that matters most, because everything about how long a shower lasts depends on what's sealed underneath the tile, not what's visible on top of it.
Frequently Asked Questions
Why is waterproofing more important than the tile or grout itself?
Tile and grout are both somewhat porous, so on their own they slow water down rather than stop it completely. The membrane system installed underneath and behind the tile is what actually creates a continuous water barrier; the tile is the visible, durable surface layer on top of that barrier, not a waterproofing layer in itself.
What happens if waterproofing is done poorly?
Water works its way through tile and grout slowly, and if the membrane behind it has a gap, an unsealed seam, or a poorly sealed penetration, that moisture can reach the wall framing or subfloor without any visible sign on the surface for a long time. By the time discolouration, a musty smell, or soft flooring shows up, the damage is often already extensive, which is why getting the membrane right the first time matters more than almost any other step.
How does the choice of shower pan affect how well the waterproofing performs?
Both a pre-formed and a mud-set pan can be waterproofed reliably, but each has a different membrane detail: a pre-formed pan usually has an integrated or bonding-flange membrane connection at its edges, while a mud-set pan needs a membrane applied over the mortar bed itself, sloped evenly to the drain. Getting the transition between the pan and the wall membrane fully sealed matters more than which pan type you choose.
Do niches and curbs need special waterproofing attention?
Yes. A niche is a break in an otherwise continuous wall membrane, and a curb sits at the transition between the shower floor and the room outside it, so both need to be treated as part of the same waterproofing system rather than tiled over as a separate step. Corners, the niche sill, and the curb's top and sides all get the same membrane coverage as the main shower walls.
Can waterproofing be added to an existing shower without a full rebuild?
Generally, no, not properly. Waterproofing has to go on before tile, directly against the backer board or substrate, so it can't be retrofitted behind tile that's already installed. If an existing shower has a waterproofing failure, the honest fix is removing the affected tile down to the substrate and rebuilding the membrane system properly, rather than trying to seal over the surface.
